无人机管道

关键引入文件：

  • 第一步：引入框架地图关键文件
    • https://mhc.ixiera.com/mhc/main_min.js
    • https://mhc.ixiera.com/mhc/Cesium-1.120/Build/Cesium/Cesium.js
    • https://mhc.ixiera.com/mhc/Cesium3DTile.js
  • 第二步：引入无人机管道文件
    • https://mhc.ixiera.com/mhc/mchmap/UAVpathTrajectory/js/UAVPathTrajectoryManager.min.js

1.极简-初始化无人机和管道控制器

uavManager = new UAVPathTrajectoryManager(viewer, {

                dronecontroller: {

                    pathPoints: initialPositions,

                },

                pipeGenerator: {

                    pathPoints: initialPositions

                },

                isSmoothedPath: false,

}

2.参数说明：

viewer：创建的view实例。

isSmoothedPath: 是否需要平滑路径，默认值：false；

dronecontroller无人机 param 参数：(如果不传，就不实例无人机)

参数数据类型是否必填说明
pathPointsArray必填路径点-飞行路径，长度大于等于2；
默认结构：[{longitude: xxx, latitude: xxx, height: xxx},...]
useModelboolean选填无人机是否使用3D模式；默认：true
modelPathstring选填无人机自定义模型路径；默认：'https://mhc.ixiera.com/mhc/mchmap/UAVpathTrajectory/source/CesiumDrone.glb'
针对useModel：true时有效
imagePathstring选填无人机自定义图片路径;默认：'https://mhc.ixiera.com/mhc/mchmap/UAVpathTrajectory/source/icon_uav.png'
针对useModel：false时有效
droneScalenumber选填无人机缩放大小，默认值：1
aniTimenumber选填无人机该路程运动时长（单位：秒），默认值：60
isLoopboolean选填是否循环飞行



pipeGenerator轨道 param 参数：(如果不传，就不实例轨道)

参数数据类型是否必填说明
pathPointsArray必填路径点-飞行路径，长度大于等于2；
默认结构：[{longitude: xxx, latitude: xxx, height: xxx},...]
pipeRadiusnumber选填飞行轨迹管道半径 ，默认值：5
materialColorstring选填飞行轨迹管道材质颜色，默认值：‘#04e7e433’
materialTypestring选填材质类型('glow' | 'trail') 默认值：'glow'
glow:管道会呈现出一种柔和的发光效果'
trail:呈现管道 *选中需引用https://mhc.ixiera.com/mhc/mchmap/UAVpathTrajectory/js/polylineVolumeLightingTrailMaterialProperty.min.js



3.显示/隐藏无人机+路线

         uavManager.toggleDroneVisibility();    //无人机

         uavManager.togglePipeVisibility();       //轨道

4.destroy销毁无人机+路线

        uavManager.destroy();

5.更新路径

        uavManager.updatePipeParams({pipeRadius:80,materialType: 'trail'});   //参数参考上面表格

        uavManager.updateDroneParams({aniTime:60,isLoop: false,useModel: false,droneScale: 2, imagePath: './source/icon_uav.png',});    //参数参考上面表格

6.完成代码实例

    <script src="https://mhc.ixiera.com/mhc/main.js"></script>

    <script src="https://mhc.ixiera.com/mhc/Cesium-1.120/Build/Cesium/Cesium.js"></script>

    <script src="https://mhc.ixiera.com/mhc/Cesium3DTile.js"></script>

    <script src="https://mhc.ixiera.com/mhc/mchmap/UAVpathTrajectory/js/pathUtils.min.js"></script>

    <script src="https://mhc.ixiera.com/mhc/mchmap/UAVpathTrajectory/js/UAVPathTrajectoryManager.min.js"></script>

    <style>

        html,body,#cesiumContainer { width: 100%;height: 100%;margin: 0;padding: 0;overflow: hidden;}

        .btnsBox {position: fixed;top: 10px;left: 10px;width: 70%;height: 30px;}

        .btnsBox button {background-color: #fff;border-radius: 2px;color: #333;line-height: 30px;margin-right: 15px;font-size: 12px;padding: 0 15px;cursor: pointer;}

    </style>

<body>

    <div id="cesiumContainer"></div>

    <div class="btnsBox">

        <button onclick="toCreate()">初始化无人机+管道</button>

        <button onclick="toDestroy()">销毁无人机+管道</button>

        <button onclick="toUpdate()">更新参数</button>

        <button onclick="toUpdatePath()">更新轨迹-》平滑</button>

        <button onclick="toggleVisibility()">显示隐藏管道</button>

        <button onclick="toggleDroneVisibility()">显示隐藏无人机</button>

    </div>

    <script >

        // 步骤1、初始化Cesium

        const view3D = MchCesium.init('cesiumContainer', true);

        const viewer = MchCesium.viewer;

        // 步骤2、加载飞行路径

        const initialPositions = [

            {longitude: 116.57698639239828, latitude: 40.44350820706789, height: 350},

            {longitude: 116.58320680517834, latitude: 40.44479157439789, height: 520},

            {longitude: 116.59045717108023, latitude: 40.44650471866103, height: 717},

            {longitude: 116.5937053223204, latitude: 40.46687213916627, height: 356},

            {longitude: 116.60861780306922, latitude: 40.46324631398799, height: 396},

            {longitude: 116.6140555010281, latitude: 40.46220665726538, height: 478},

            {longitude: 116.6212575410881, latitude: 40.45092817732121, height: 299},

            {longitude: 116.62335032128567, latitude: 40.44037501874135, height: 257},

            {longitude: 116.62394086232717, latitude: 40.433133068203865, height: 193},

            {longitude: 116.62457226126685, latitude: 40.4238096714677, height: 269},

            {longitude: 116.62071108955061, latitude: 40.42420769481539, height: 467},

            {longitude: 116.61699406933735, latitude: 40.42004691573184, height: 390},

            {longitude: 116.61146238156039, latitude: 40.41812121010256, height: 269},

            {longitude: 116.60758142674928, latitude: 40.418143300483024, height: 278},

            {longitude: 116.60563107800976, latitude: 40.418244152176726, height: 248},

            {longitude: 116.60330911218746, latitude: 40.41873325173327, height: 314},

            {longitude: 116.59964349716748, latitude: 40.4199524058387, height: 377},

            {longitude: 116.59519680136547, latitude: 40.41855415772477, height: 250},

            {longitude: 116.59433475696123, latitude: 40.424735576304926, height: 326},

            {longitude: 116.58861938295638, latitude: 40.424052048802636, height: 227},

            {longitude: 116.5869596683047, latitude: 40.4316354100928, height: 411},

            {longitude: 116.58136534810056, latitude: 40.43044293009731, height: 255}]

        let uavManager

        function toCreate(){

            if(uavManager){toDestroy()}

            uavManager = new UAVPathTrajectoryManager(viewer, {

                dronecontroller: {

                    pathPoints: initialPositions,

                },

                pipeGenerator: {

                    pathPoints: initialPositions

                },

                isSmoothedPath: false,

            });

        }

        // MchCesium.flyto(116.60, 40.44, 50, function () {

        //     console.log('flyto');

        // })

        // 按钮事件绑定

        function toUpdate() {

            uavManager.updatePipeParams({pipeRadius:80,materialType: 'trail'});

            uavManager.updateDroneParams({aniTime:60,isLoop: false,useModel: false,droneScale: 2,

                    imagePath: './source/icon_uav.png',});

        }

        function toUpdatePath(){

            uavManager.updatePath(initialPositions,true)

        }

        function toggleVisibility() {

            uavManager.togglePipeVisibility();

        }

        function toggleDroneVisibility() {

            uavManager.toggleDroneVisibility();

        }

        function toDestroy() {

            uavManager.destroy();

        }

        toCreate()

    </script>

</body>

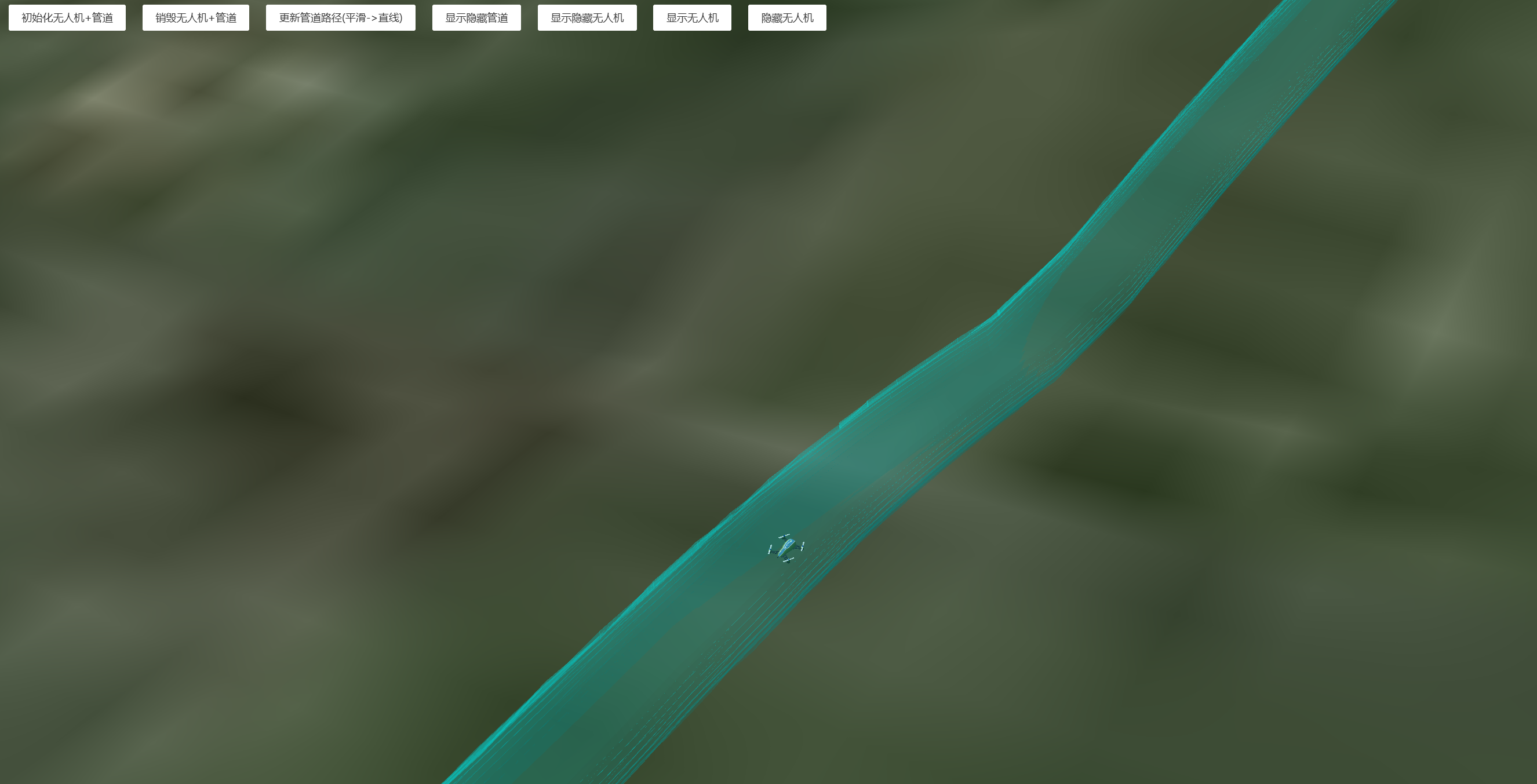

7.效果展示

https://mhc.ixiera.com/mhc/mchmap/UAVpathTrajectory/index.html
